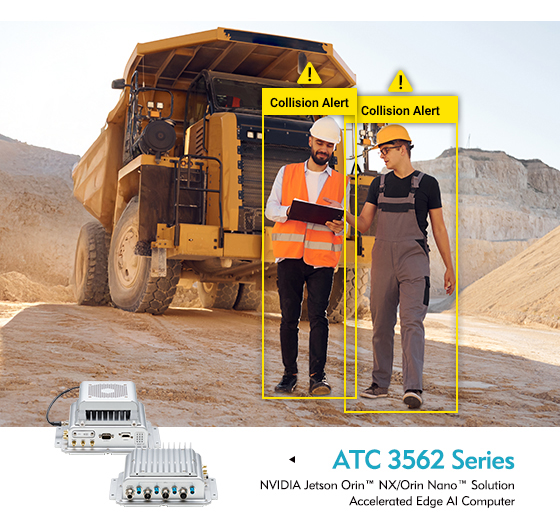

In today’s era of connected mobility, transportation computers are evolving from simple data-logging machines into intelligent edge platforms that power autonomous vehicles, smart fleets, and AI-driven operations. These systems must do more than survive: they must think, adapt, and deliver actionable insights in real time. Nowhere is this transformation more critical than in heavy industries like mining, where vehicles operate in remote, high-risk environments, and every decision impacts safety, efficiency, and cost. Designed to meet these challenges head-on, the ATC 3562 delivers ruggedized edge AI performance built to endure — and excel — at the frontline of modern mining.
Rugged intelligence for real-world mining conditions
Mining environments are punishing: dust, vibration, temperature swings, and moisture are routine. The ATC 3562 is purpose-built to withstand them all. It features an IP67-rated chassis, is certified to MIL-STD-810H standards for shock and vibration, and operates reliably in extreme temperatures ranging from -25°C to 65°C.
Powered by the NVIDIA Jetson Orin Nano™ in “Super Mode,” the fanless ATC 3562-IP7-NA4M model delivers up to 67 TOPS of AI inference performance. For even greater processing power, the Jetson Orin™ NX-equipped ATC 3562-IP7-NX4MF, with fan kit, pushes performance up to 157 TOPS. With this combination of rugged design and scalable AI capability, the ATC 3562 ensures that real-time analytics, object detection, and hazard recognition continue uninterrupted, allowing mining operations to maintain uptime and safety even in the toughest field environments.
Multi-sensor edge technology for smarter autonomy
Modern mining sites rely on a complex web of data streams, including LiDAR, GMSL2 cameras, and GPS systems. The ATC 3562 is designed to handle them all, fusing multi-modal data at the edge for instant analysis and decision-making.
- 4-channel GMSL2 input + two GbE for high-throughput video and sensor data capture
- PCIe 4.0 ×4 NVMe SSD slot for ultra-fast local data storage and retrieval
- Expandability for GNSS, LTE/5G NR, and Wi-Fi 5/6 modules for seamless connectivity
By combining these capabilities, the system supports object detection (e.g. personnel, vehicles, rock faces), collision avoidance, and terrain mapping, all with minimal latency.
Flexible power and connectivity for mobile mining platforms
Mining vehicles and mobile platforms often face volatile power conditions. The ATC 3562 supports a wide DC voltage range (9V to 36V) with ignition control, ensuring stable operation across different vehicle types. Its broad I/O suite, including USB 3.2, OTG, isolated CAN bus, RS-232, DI/DO, and HDMI®, makes integration straightforward with telematics modules, control systems, and legacy interfaces. Optional 5G and Wi-Fi modules maintain high-speed connectivity for telemetry, software updates, and AI model retraining, even in remote outposts.
Main Features
- Built-in NVIDIA Jetson Orin Nano™ 8GB SoM, up to 67 TOPS AI performance in Super Mode (ATC 3562-IP7-NA4M) OR NVIDIA
- Jetson Orin™ NX 8GB/16GB SoM, up to 157 TOPS AI performance in Super Mode (ATC 3562-IP7-NX4MF)
- Rugged, fanless design with IP67 rating
- 4-CH GMSL2 and 2 x GbE for camera and LiDAR sensors
- HEVC/H.265 hardware decoding, up to 11 x 1080p@30Hz
- Wide-range operating temperature of -25°C to 65°C
- Ultra-fast PCIe 4.0 x4 NVMe SSD for data integrity
- Expandable for GNSS, LTE/5G NR, and Wi-Fi 5/6
- Wide 9-36V DC power input with 24V rail, ignition control, and OCP/OVP
- NEXCOM Acceleration Linux (NAL) OS with integrated JetPack 6.2
- Meets MIL-STD-810H standards for anti-vibration/shock
- CE/FCC UKCA, E-mark, EN 50155, and EN 45545-2 certified
- Ordering Information
ATC 3562-IP7-NA4M-8 (P/N: 10AT0356201X0)
IP67 rating AI edge computer, NVIDIA Jetson Orin Nano™ 8GB, Super Mode, fanless, 128GB NVMe, 4 x GMSL2, 2 x GbE, 1 x RS-232, 2 x USB 3.2, DC 9V~36V/24V rail
ATC 3562-IP7-NX4MF (P/N: 10AT0356202X0)
IP67 rating AI edge computer, NVIDIA Jetson Orin™ NX 8GB, Super Mode, fan kit, 128GB NVMe, 4 x GMSL2, 2 x GbE, 1 x RS-232, 2 x USB 3.2, DC 9V~36V/24V rail
ATC 3562-IP7-NX4MF-16 (P/N: 10AT0356203X0)
IP67 rating AI edge computer, NVIDIA Jetson Orin™ NX 16GB, Super Mode, fan kit, 128GB NVMe, 4 x GMSL2, 2 x GbE, 1 x RS-232, 2 x USB 3.2, DC 9V~36V/24V rail
This article was originally published by NEXCOM.
